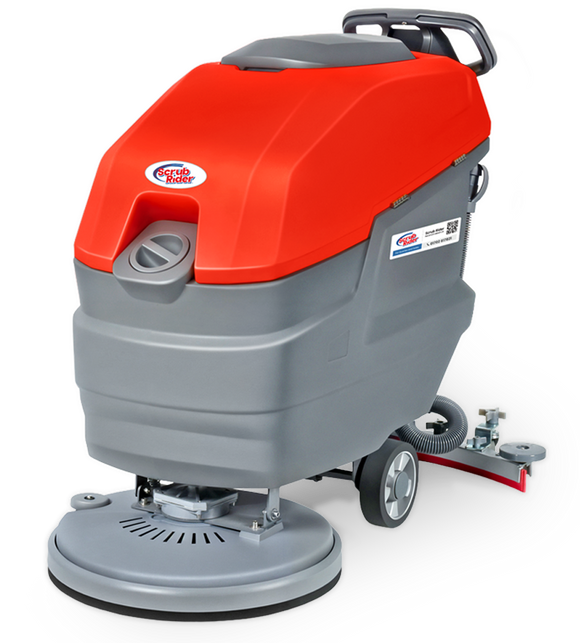

Walk Behind Floor Scrubber X3S

Scrub Rider X3S Product Specifications:

Working Voltage: DC 24V
Battery Life: 3-4 hours
Fresh Water Tank Capacity: 52 L
Cleaning Width: 510 mm
Cleaning Speed: 0-5 km/h
Noise Level: 65 dB(A)
Disc Brush Motor Power: 550 W
Disc Brush Rotational Speed: 200 rpm/min
Water Regulation: Mechanical

Battery Capacity: Maintenance-Free Lead-Acid 100AH
Estimated Productivity: 2150 m²/h
Dirty Water Tank Capacity: 58 L
Water Suction Width: 780 mm
Operation Power: 1050 W
Water Suction Motor Power: 500 W
Squeegee Weight: 4.2 kg
Brush Contact Pressure: 20 kg
Water Level Protection Device: Float Ball
Machine Weight: 152 kg
Machine Dimensions (L x W x H) (mm): 1200 x 780 x 1050

Product Features:

• Material of the Machine Body: Made of imported LLDPE/EUP engineering plastics, the entire machine is rotationally molded. It is resistant to acids, alkalis, and corrosion, making the machine body easy to maintain.

• Control System: LNQI integrated control system. It improves the stability of the operation of all core components and reduces the rate of electrical circuit failures.

• Operating System: The device features an intuitively designed control panel with independent switches and clearly segmented functional zones, enabling users to operate it independently after just a single training session.

• Soft Start: The brushes and water suction motors have a soft start function, which protects the motors and extends their service life. The delayed shutdown of the water suction system effectively reduces residual wastewater.

• Battery Configuration: Equipped with standard 100Ah TianNeng high-capacity maintenance-free batteries, which provides a running time of about 3-4 hours.

• The squeegee is corrosion-resistant, easy to disassemble and assemble, does not deform.

• Drive Wheels: High-quality imported polyurethane (PU) material solid tires, with non-slip, non-marking and super wear-resistant features.

• Float Ball Assembly: When the wastewater level rises to the protection line, the float ball protection device will automatically activate to prevent water from entering the motor.

• Motor Configuration: Equipped with a 550W disc brush motor and a 550W water suction motor from Ametek, which are more energy-efficient and quieter.

• Smart System: Users can opt to install a liquid crystal integrated control panel and a smart IoT system. Through this system, users can monitor the equipment's usage in real-time and achieve intelligent perception, recognition, and management functions.
